Candlestick Plot

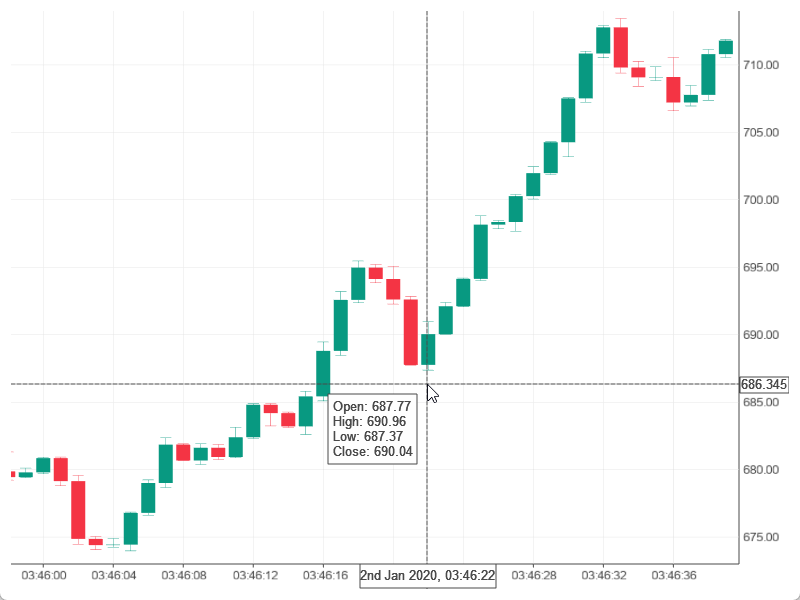

The candlestick function (candlestick()) generates a candlestick plot from the passed open, high, low, close prices, which should be equal-length vectors.

In Python, candelstick_from_df() can be used to plot a candlestick chart given a Pandas DataFrame with columns “open”, “close”, “high”, “low” (case-insensitive).

Pressing ‘Enter’ on the interactive plot will cycle between different candle-stick plot modes, including:

• Full: standard candlesticks with upper and lower shadows (wicks).

• No caps: candlesticks without shadow caps.

• Body only: only the candle body is drawn, without shadows.

• Line (open): a gradient-colored line drawn through the open prices.

• Line (close): a gradient-colored line drawn through the close prices.

The mode can be passed directly to the plotting function, see the API docs for the full argument list.

Python

from rallyplot import Plotter
from rallyplot import get_toy_candlestick_data

plotter = Plotter(
    anti_aliasing_samples=8,
)


open_high_low_close_df, volume, dates = get_toy_candlestick_data(N=100_000)

# Split out the difference prices to highlight the `candlestick() API.
# In reality we could use candlestick_from_df() here.
open_ = open_high_low_close_df["open"]
high_ = open_high_low_close_df["high"]
low_ = open_high_low_close_df["low"]
close_ = open_high_low_close_df["close"]

line_mode_linewidth = 1.25
candle_width_ratio = 1.0
cap_width_ratio = 1.0

plotter.candlestick(
    open=open_,
    high=high_,
    low=low_,
    close=close_,
    dates=dates,
    mode="full",
    candle_width_ratio=0.8,
    cap_width_ratio=0.8,
    line_mode_linewidth=1.5
)

plotter.start()

C++

#include <Plotter.h>
#include <ToyData.h>

int main(int argc, char* argv[])
{

    CandleData candleData = getToyCandlestickData(100000);

    Plotter plotter = Plotter();

    CandlestickSettings candlestickSettings;

    // Start the plot in line mode (open prices)
    candlestickSettings.mode = CandlestickMode::full;

    // Set the width of the line when in line mode
    candlestickSettings.lineModeLinewidth = 1.25f;

    // Set the width of the candle (as a ratio of space between
    // candles, 1.0f is no space between candles, 0.5f is the space
    // between candles equals the candle width). Similar for the
    // shadow cap width.
    candlestickSettings.candleWidthRatio = 0.8f;
    candlestickSettings.capWidthRatio = 0.8f;

    plotter.candlestick(
        candleData.open,
        candleData.high,
        candleData.low,
        candleData.close,
        candlestickSettings
        );

    plotter.start();

}
